The PAN Disrupter™ is a Breech loaded, 12 Gauge system, that can accept up to 3½” fired rounds. Velocities up to 3650 Feet per second for specific rounds.
•The PAN Disrupter™ is Shock Tube initiated, and percussion actuated. It has a floating firing pin.
• LARGE Water volume of 140ml to maximize disruption (Velocity of 1450 feet per second).
• It is constructed of high grade Stainless Steel, capable of withstanding chamber pressures of at least 20,000 psi and has been tested using flash testing including Flash X-Ray and Chronographs.
• Two or more targets inside the bomb can be impacted with an isochronicity of 500 microseconds of each other.
• The PAN Disrupter™ has a 24" Barrel. • All certification and re-certification for Bomb Techs at the FBI Hazardous Device School in Huntsville, Alabama will be using the Original PAN Disrupter™ EXCLUSIVELY!

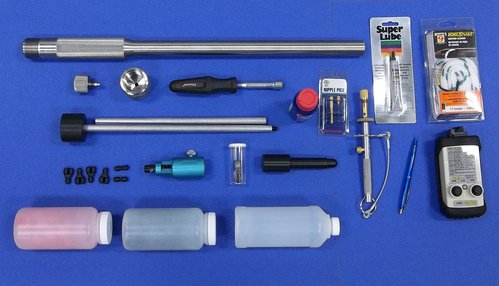

Qty Part # Description
1 1100 24” Stainless Steel Barrel (12ga)
2 3000PL Firing Pins (part # 3000PL)
1 1111 PAN Breech Cap
3 3020PL Springs (part # 3020PL)
1 K4350PL Push Lock Breech Plug (assembled)
1 4351 Push Lock Fitting
1 2001 Seating Tool
4 3073YPL Push Lock “Y” Fitting
1 2010 Shell Extractor
2 3073CPL Push Lock Coupling
1 7250PL 7/16 Nut Driver
50 3090 Red Plugs
1 2045 Gun Bore Cleaning Kit
50 3100 Black Plugs
1 K2001 Laser Sight and Adapter
1 5000 Operator’s Manual (CD)
1 2050 Omni MK31 Initiator
1 K4020 Plastic Case with foam insert
1 2055 Duke Pro (ESI/2) Initiator
1 K3118 Aluminum Post Stand
1 3130 WD-40
1 7110 Firing Pin Tool
